DSC Wireless Reed Switch, WS4945W is designed to work seamlessly with your existing DSC wireless security system. Keep your doors and windows secure and gain peace of mind knowing that your home or business is protected.
Model: PG4914

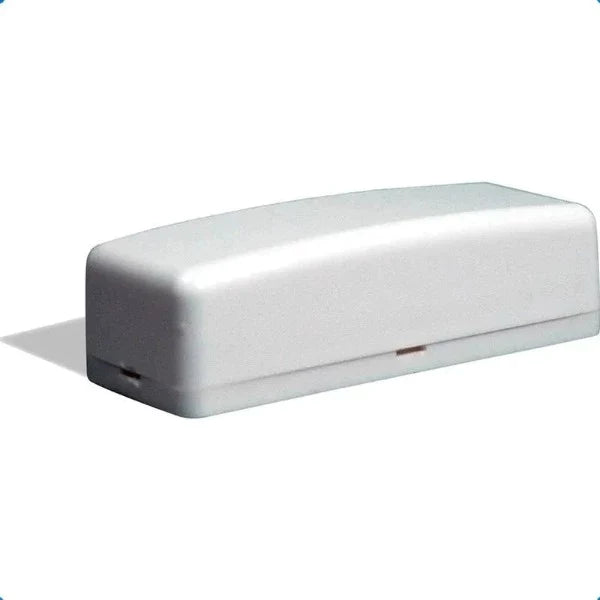

DSC WS4945 is a normally closed (NC) wireless door / window contact compatible with DSC wireless alarm systems (see below for more details).
The WS4945 contact has become the new DSC standard for door/window contacts due to its streamlined profile (30% smaller than its predecessor the WLS925L-433/ WLS935L) and new design that allows for double-sided tape mounting. These features combine to help get you in and out of your jobs faster than ever before.
The WS4945 features a preinstalled battery that is activated by installers through a pull tab. This helps reduce installation time as casings don’t need to be opened for battery insertion. Simply draw the activation pull tab and mount the contact. To help further simplify the installation process, DSC has placed the PCB on the contact’s cover. If you prefer to mount the contact using screws (recommended when using the wall tamper option), the new design does not require the removal of the PCB to do so.
The WS4945 is designed for dependable case- or wall tamper detection. Depending on how the contact is purposed, it will send a signal to the alarm system if either its casing is opened or if it is forcibly removed from a wall. If the alarm system is armed when this occurs, an alarm will be activated and the central station will be notified of the violation (if programmed to do so). The WS4945 also features an external contact input that allows a standard hardwired door to be connected to it. This is useful for installations where it is difficult to mount the magnet within the maximum allowable gap of the contact (5/8˝ [16 mm]).
Significantly smaller than many door/window contacts,the WS4945 is housed within a compact casing that allows it to be used for the tightest-fitting installations. Once installed, the contact is inconspicuous and complements the décor of most homes. It is built with reliable 433 MHz technology, uses a long-life lithium battery and is compatible with all current DSC wireless receivers
Features
- DSCWS4945W original pack from DSC Australia
- Built-in reed switch
- Normally closed external contact input
- 1 lithium battery included
- Reliable 433 MHz and 868 MHz technology
- Available in brown housing
- Case and wall tamper
Compatiblity
- IMPASSA Self-Contained 2-Way Wireless Security System
- ALEXOR 2-Way Wireless Security System
- SCW9045/9047 Self-Contained Wireless Security System
- PowerSeries Wireless Receivers PC5132-433 / RF5132-433 / RF5108-433 / TR5164-433
- PowerSeries RFK Keypads RFK55XX-433
- MAXSYS Wireless Receivers PC4164-433 / RF4164-433
- WS4920 Wireless Repeater
A wireless reed detector will work with your security system to provide early detection of gross attacks or low-level shocks.
Shop CTC Security for best deals on DSC motion detectors and .
Downloads
Optional Accessories
 |  |  |
|
|
|
|
|
|
Warranty
DSC products are covered by a replacement guarantee for 2 years from the date of purchase.
CTC Security will cover postage for all replacement parts, but will not cover labour for installation cost.
CTC Security offers a 1 year warranty on labour when the system is installed by us.
