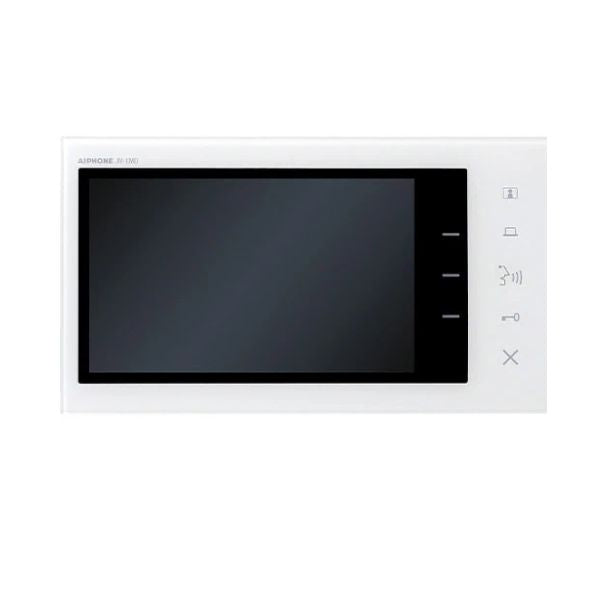

Aiphone JV-1MD Intercom Master station Hands-Free Video System.

The Aiphone JV-1MD Video Master Station features a sleek 7” screen, hands-free or push-to-talk communication, and clear video identification. Ideal for home or office security, it seamlessly integrates with the JVS-1V Intercom Kit.

Key Features:

Intercom Internal Monitor Station (JV-1MD)

• 7” screen for clear video identification and monitoring
• Slim, modern design to complement any space
• Hands-free communication with push-to-talk (simplex) option

Technical Specifications:

Power Source: 24V DC (PS-2420UL)
Door Release Options:

• Master/Expansion Station & Door Station: N/O dry contact, 24V AC/DC, 1A
• Second Door Station Output: N/O wet contact, 500mA (max), 12V DC

Communication Modes:

• Hands-free (VOX) or push-to-talk (simplex)

Wiring Requirements:

• Door Station to Master Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
• Door Station to Expansion Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
• Expansion to Master Station (without door release): 4-conductor, mid-cap, solid, non-shielded (Aiphone #871804 OR 2 runs of Aiphone #871802)
• Expansion to Master Station (with door release): 6-conductor, mid-cap, solid, non-shielded (Aiphone #871802 + #871804 OR 3 runs of Aiphone #871802)

Maximum Distance:

• Door Station to Master Station: 165' (22AWG) / 330' (18AWG)
• Door Station to Expansion Station: 165' (22AWG) / 330' (18AWG)
• Expansion Station to Master Station: 165' (22AWG) / 330' (18AWG)
• Power Supply to Master Station: 16' (22AWG) / 33' (18AWG)

Perfect for residential or commercial settings, the Aiphone Video Master Station, JV-1MD is an ideal intercom when combined with JV-DV door station

Available now at CTC Security – order today!
