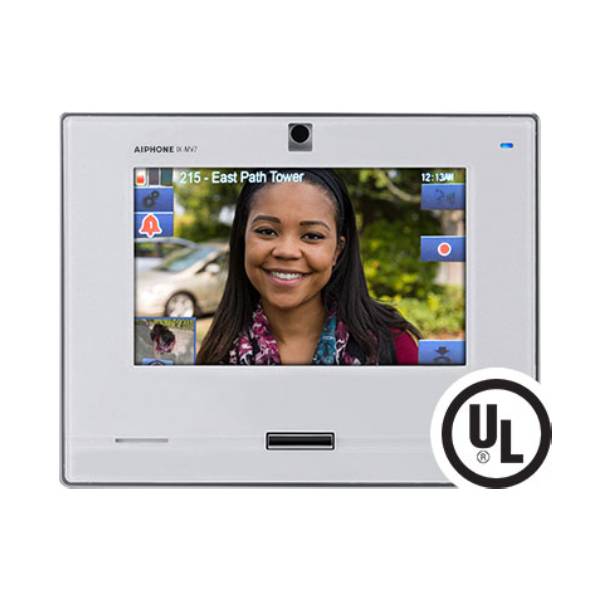

The IX-MV7-W is an IP Video Master Station, SIP compatible in large 7" colour touchscreen, white. UL Certified.
Model - IX-MV7-W
SIP - Peer to Peer- Backwards Compatible- ONVIF®
The Aiphone IX Series intercoms offer the power of an enterprise platform with the simplicity of a single intercom and telephone system.
The IX Series is a perfect solution for commercial sites, industrial facilities, schools, campuses, parking garages, retail, emergency call, and correctional applications.
Utilizing SIP, register any IX Series intercom station to place or forward calls to an external phone number. Master stations can now serve a dual role as a single command point, controlling security layers such as access control and emergency communications.
With picture-in-picture, master stations can toggle between ONVIF® Profile SIP cameras and the new 1.3 megapixel cameras on IX Series video door stations. Line supervision ensures all stations are online while device check verifies every button, station speaker, and microphone are operating properly.
Monitor Features :
- SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®
- ONVIF® Profile S Compliant
- 802.3af PoE, Class 0
- 7″ TFT LCD color touchscreen that can be wall or desk mounted (desk stand included).
- Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
- Hands-free or push-to-talk communication
- 8 customizable speed dial buttons
- Turn your master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
- 2 contact outputs, 4 trigger inputs
- 8Ω 1/2 watt speaker output provides better coverage for announcements
- 600Ω audio input
- 2-year warranty!
Shop CTC Security for best deals on
Specifications
Power Source
- PoE (IEEE 802.3af class 0)
- Power Draw
- 4.32 Watts
- Camera
- ⅓" CMOS 720p
- Min. illumination
- 5 Lux
- Audio Codec
- G.711 (μ-law, A law), G.722
- Video Codec
- H.264/AVC, Motion JPEG
- Protocols
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security
- IEEE 802.1X
- Operating Temp
- 32° - 104°F (0° - 40°C)
- Dimensions
- 6-3⁄4" H x 8-11⁄16" W x 1-1⁄4" D
- Mounting
- Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.
Downloads
Warranty
Aiphone IX Series Intercom products are covered by a 2 years Manufacturer Warranty from the date of purchase.
CTC Security will cover postage for all replacement parts, but will not cover labour for installation cost.
CTC Security offers a 1 year warranty on labour when the system is installed by us.
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
