This compact bundle comprises of a Security Cabinet where a system NVR can be safely installed and offering ease of system access in tight spots whenever needed. Kit comes with 24" display monitor to offer 1080p Full HD resolution, and a right-angle HDMI adapter for ease of installation

Model : SECCAB+LCDFL24G+HDMIBMTF

The SECCAB offers secure storage of CCTV surveillance, alarm & access control systems in difficult areas with limited space, such as behind refrigerators, in cupboards or wardrobes.

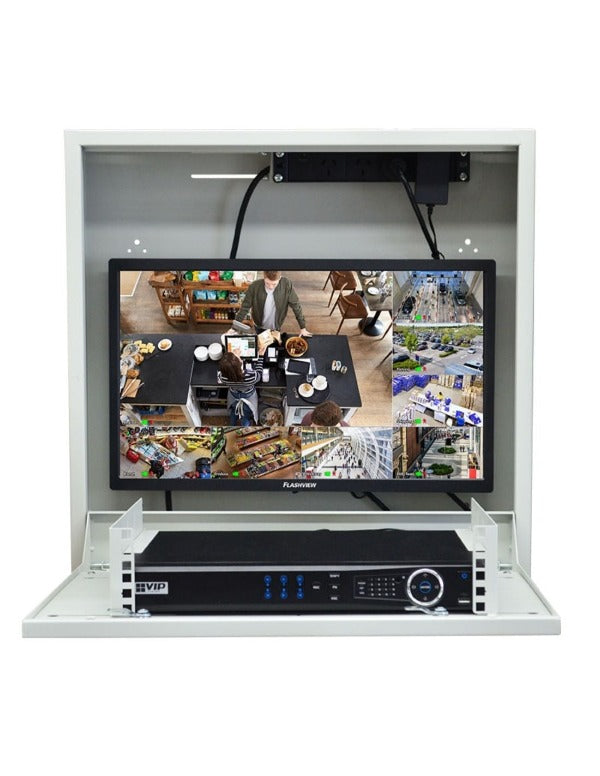

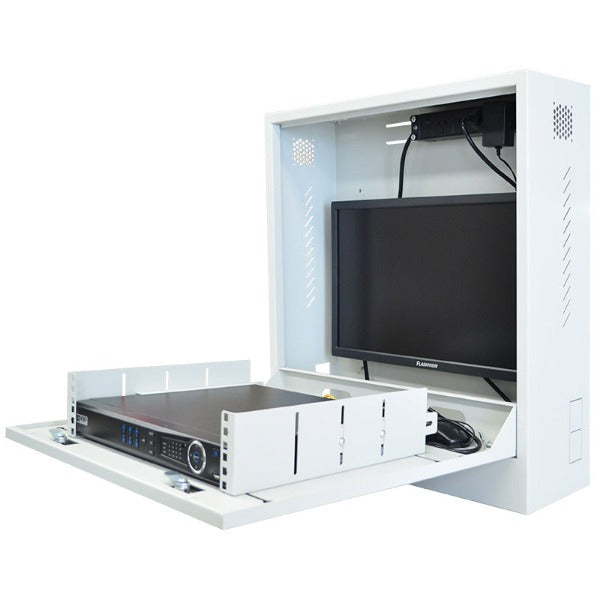

The SECCAB vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24'' LCD monitor. It can house 1 HDD, 2HDD and 4HDD bay NVRs and DVRs from VIP Vision, Watchguard, Securview. It can also accommodate a WGAP864 alarm system and professional VIP Vision access control system in a single cabinet.

Product features:

• Full HD 1080p (1920 x 1080) video resolution
• Horizontal facing input ports; 1 x HDMI input & 1 x VGA input
• 178° (H) & 178°(V) extra-wide viewing angles
• 8ms response time for smooth operation
• 1000:1 contrast ratio
• 1 x audio output
• Low energy consumption (<0.3W standby)
• External 19VDC power supply
• VESA 100x100 mountable

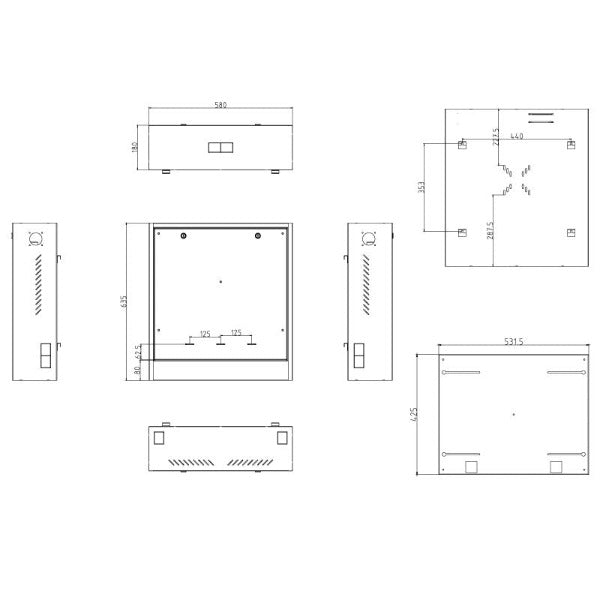

• Compact; only 580(W) x 635(H)x 180(D)mm (closed)
• Capacity: 2RU, 240~480mm width, 465mm depth
• Cable management knockouts from all cabinet sides
• Superior ventilation; optional 2 x 50mm cooling fans

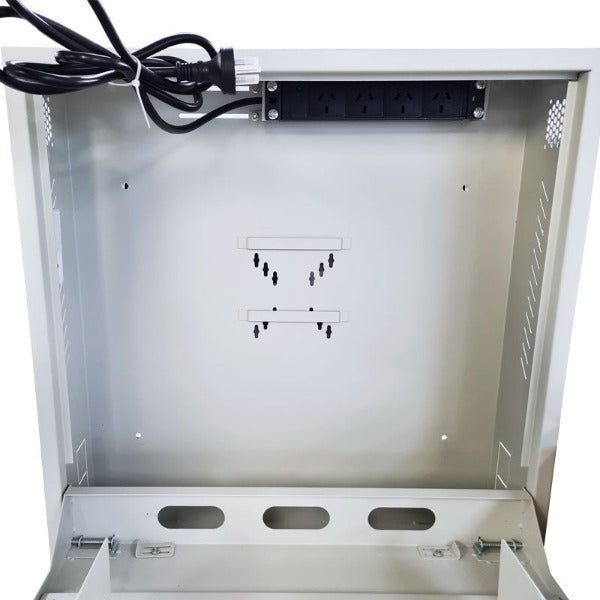

• Integrated 4 x outlet powerboard & 2 x cabinet locks
• 30kg cabinet load-bearing capacity (10kg vertical shelf)

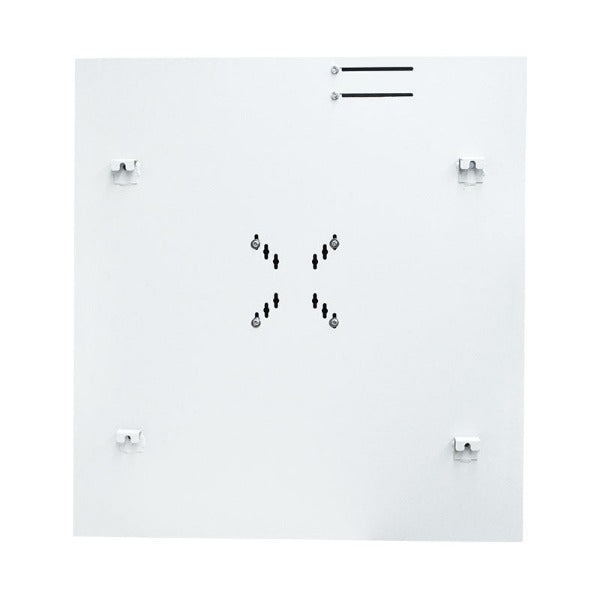

• 440mm width between mount points to fit wall studs
• SPCC steel construction and white powder coating

Kit Includes :

• 1 x - SECCAB

• 1 x  - LCDFL24K

• 1 x  - HDMIBMTF

* Ensure monitor has vertical / downwards-facing input ports & power connectors
* 4 x nuts, washers & bolts included for monitor mounting

*NOTE:

We recommending only using  as other monitors may not fit, use  for ease of monitor setup inside cabinet.
