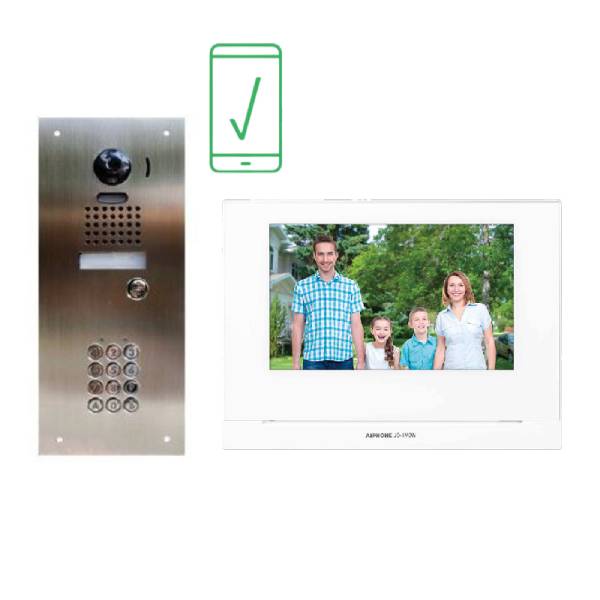

Ideal intercom for home or office, the JO series Smartphone Intercom Kit, features handsfree design with large 7" colour screen for viewing of keypad style door station, door release function and smartphone app for remote viewing.

Model : JOWACCESSKIT

Shop CTC Security for best deals on

The new Aiphone JO Series intercom system with Wi-Fi Monitor is an IP system, it has Smartphone Connection to your mobile, touch screen, picture memory and a wide angle camera.
Aiphone intercoms come with a standard 3 year warranty.

Intercom Kit Includes :

• 1 x Internal Monitor Station
• 1 x Video Door Station
• 1 x AC10U Keypad Module
• 1 x GT3B Flush Box
• 1 x Stainless Steel Plate
• 1 x Aiphone power supply

Internal Monitor Station

• Model: AI-JO-1MDW
• Video display: 7" TFT LCD touchscreen
• Mounting: Surface wall mount or desk mount with MCW-S stand
• Internal call recording: 10 calls max. at 10 seconds per call
• Memory expansion: Micro SDHC card slot, 32GB max.
• Call recording with max memory: 1,000 calls max. at 10 seconds per call
• Door release: N/O dry contact, 24V AC/DC, 500mA
• Communication style: Handsfree or PTT app
• Model: intercom App type B
• Max per system: 8 devices
• Door release: In-app slider activates contacts at JO-1MDW-20
• App available at: Apple App Store or Google Play

Video Door Station

• Model: AI-JO-DVF
• Power source: Supplied by inside monitor
• Camera: 1/4" colour CMOS
• Mounting: Flush mount using supplied box
• Faceplate material: Stainless steel
• Enclosure rating: IP54
• Impact rating: IK07
• Communication style: Handsfree
• Wiring to master: 2-cond., low cap, non-shielded
• Max. wire distance: 165" (22AWG) 33" (18AWG)

AC10U Keypad Module

• Access control with up to 100 unique user access codes
• Can be used as a stand-alone access control device
• Compact size in a stylized design
• 12-digit backlit keypad

GT3B Flush Box

• H295mm x W110mm x D44mm
• Multiple Boxes can be mounted side by side
• 25mm gap between boxes
• Joining pipes supplied

Stainless Steel Plate

• Aiphone Camera Keypad Decorative Plate
• Plate dimensions 315mm x 140mm
• GF3B Flush Box cut out L284mm x W98mm x D43
• 316 Marine Garde Stainless Steel
• Requires AC10U Keypad and GT3B Box
• Suited for JKDVF & JODVF & JPDVF

Power Supply

• Model: PS-1820UL
• Power source: AC 100 - 240V 50/60Hz
• Power output: DC 18V 2A

Specifications

• Large 7" touchscreen provides crisp, clear detail of your caller
• Answer and open your door from the on-site master or your mobile device
• Connect up to 8 smartphones or tablets per system
• On-site monitor ensures calls get answered or recorded
• Store calls with no added fees using onboard memory
• Increase call storage by adding a MicroSD card to the on-site monitor
• Watch recorded calls from the on-site master or on the mobile app
• Die-cast zinc vandal resistant surface mount video door intercom faceplate
• Video door intercom automatically activates white LED lights to see clearly at night
• Standard doorbells can be replaced to add security when seeing and speaking with visitors.
• Keypad integration for access set up

Downloads

Warranty

Aiphone Intercom products are covered by a 3 years Manufacturer Warranty from the date of purchase.
CTC Security will cover postage for all replacement parts, but will not cover labour for installation cost.
CTC Security offers a 1 year warranty on labour when the system is installed by us.
