The Aiphone JVS-1V Intercom Kit is an ideal addition to any home or office, providing enhanced security and convenience. Its elegant design, hands-free communication, and video identification capabilities make it a reliable and high-quality choice for access control. With a fixed camera and clear visuals on the internal screen, you can monitor your space with ease and confidence.

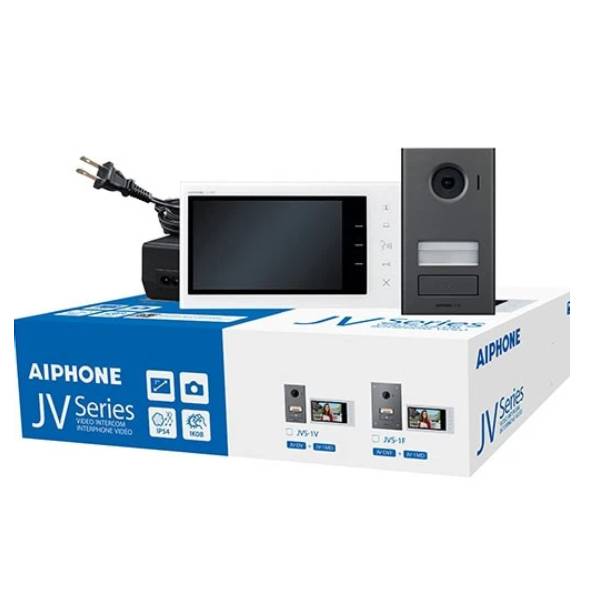

In the Aiphone Video Intercom Kit:

• 1 x 7" Touch Screen Monitor, JS-DV
• 1 x Surface Mounted Door Station,
• 1 x Power supply, PS-2420UL

Supports up to 2 intercom monitor screens

Aiphone JVS-1V Intercom Kit – 7” Hands-Free Video System

Key Features:

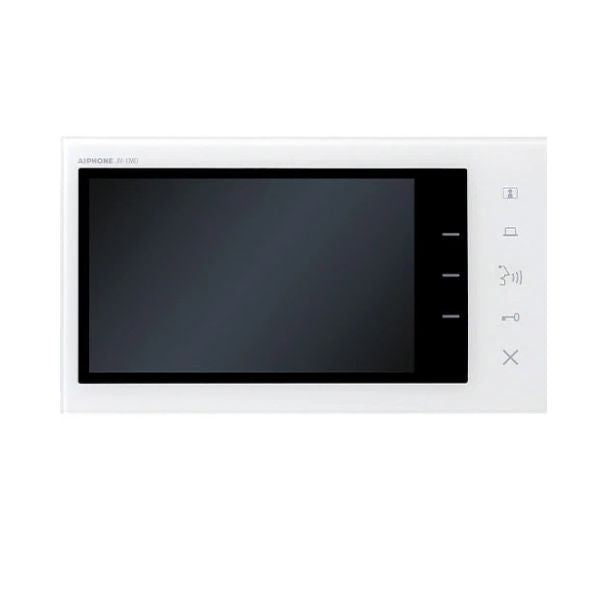

Intercom Internal Monitor Station (JV-1MD)

• 7” screen for clear video identification and monitoring
• Slim, modern design to complement any space
• Hands-free communication with push-to-talk (simplex) option

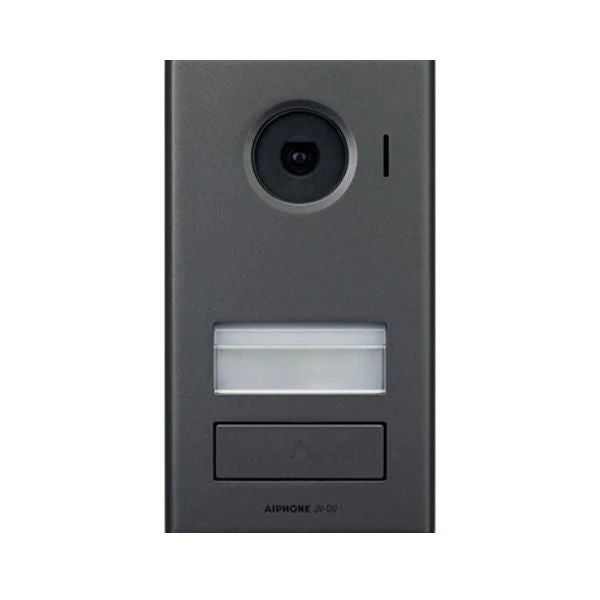

Intercom Door Station (JV-DV)

• Fixed camera for clear video feed
• Weather and vandal-resistant for enhanced durability
• LED illumination activates in low-light conditions
• Backlit call button and nameplate for easy visibility

Power Supply (PS-2420UL)

• Reliable 24V DC power source

Optional Expansion

• Supports up to 2 additional intercom monitor room stations

Technical Specifications:

Power Source: 24V DC (PS-2420UL)
Door Release Options:

• Master/Expansion Station & Door Station: N/O dry contact, 24V AC/DC, 1A
• Second Door Station Output: N/O wet contact, 500mA (max), 12V DC

Communication Modes:

• Hands-free (VOX) or push-to-talk (simplex)

Wiring Requirements:

• Door Station to Master Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
• Door Station to Expansion Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
• Expansion to Master Station (without door release): 4-conductor, mid-cap, solid, non-shielded (Aiphone #871804 OR 2 runs of Aiphone #871802)
• Expansion to Master Station (with door release): 6-conductor, mid-cap, solid, non-shielded (Aiphone #871802 + #871804 OR 3 runs of Aiphone #871802)

Maximum Distance:

• Door Station to Master Station: 165' (22AWG) / 330' (18AWG)
• Door Station to Expansion Station: 165' (22AWG) / 330' (18AWG)
• Expansion Station to Master Station: 165' (22AWG) / 330' (18AWG)
• Power Supply to Master Station: 16' (22AWG) / 33' (18AWG)

Perfect for residential or commercial settings, the Aiphone JVS-1V Intercom Kit offers an easy-to-use, secure communication system with video monitoring and access control capabilities.

Available now at CTC Security – order today!
