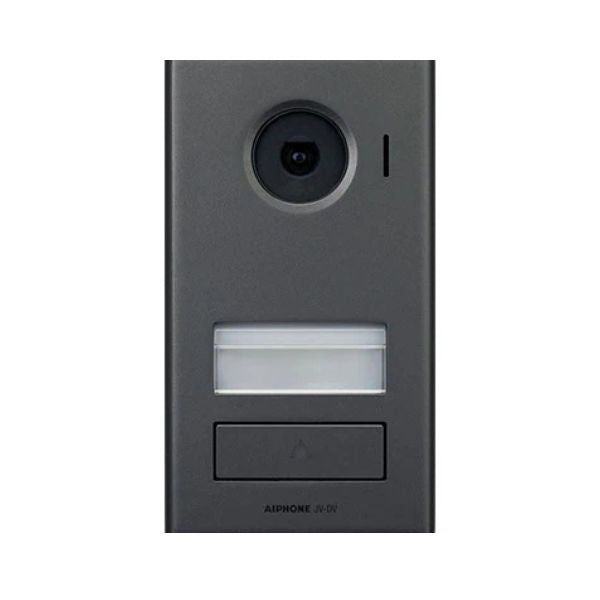

Aiphone Vandal-Resistant Door Station JV-DV

The JV-DV Video Door Station allows for convenient hands-free communication and offers a fixed camera. Additionally, its LED illumination automatically activates in low-light settings. Made of sturdy die-cast aluminum, this unit is both weather and vandal resistant. The surface mount design allows for direct attachment to the wall.

Intercom Door Station (JV-DV)

• Fixed camera for clear video feed
• Weather and vandal-resistant for enhanced durability
• LED illumination activates in low-light conditions
• Backlit call button and nameplate for easy visibility

Technical Specifications:

Power Source: 24V DC (PS-2420UL)
Door Release Options:

• Master/Expansion Station & Door Station: N/O dry contact, 24V AC/DC, 1A
• Second Door Station Output: N/O wet contact, 500mA (max), 12V DC

Communication Modes:

• Hands-free (VOX) or push-to-talk (simplex)

Wiring Requirements:

• Door Station to Master Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
• Door Station to Expansion Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
• Expansion to Master Station (without door release): 4-conductor, mid-cap, solid, non-shielded (Aiphone #871804 OR 2 runs of Aiphone #871802)
• Expansion to Master Station (with door release): 6-conductor, mid-cap, solid, non-shielded (Aiphone #871802 + #871804 OR 3 runs of Aiphone #871802)

Maximum Distance:

• Door Station to Master Station: 165' (22AWG) / 330' (18AWG)
• Door Station to Expansion Station: 165' (22AWG) / 330' (18AWG)
• Expansion Station to Master Station: 165' (22AWG) / 330' (18AWG)
• Power Supply to Master Station: 16' (22AWG) / 33' (18AWG)

Perfect for residential or commercial settings, the Aiphone JV-DV Video Door station offers an easy-to-use, secure communication system with video monitoring and access control capabilities.

Available now at CTC Security – order today!
