The DSC Neo Kit is fully wireless alarm system designed for the home or office, providing advanced security technologies to provide peace of mind and provides easy expansion for any additional security accessories.
The DSC Neo Kit is easy to install, can be managed remotely and provides peace of mind for the end user.
- Fully Wireless Keypad & one Hard Wired Keypad
- Fully Wireless PIR Detectors
- Fully Wireless Outdoor Siren
- Fully Wireless Indoor Siren
- Smartphone App for Self Monitoring of alarm system

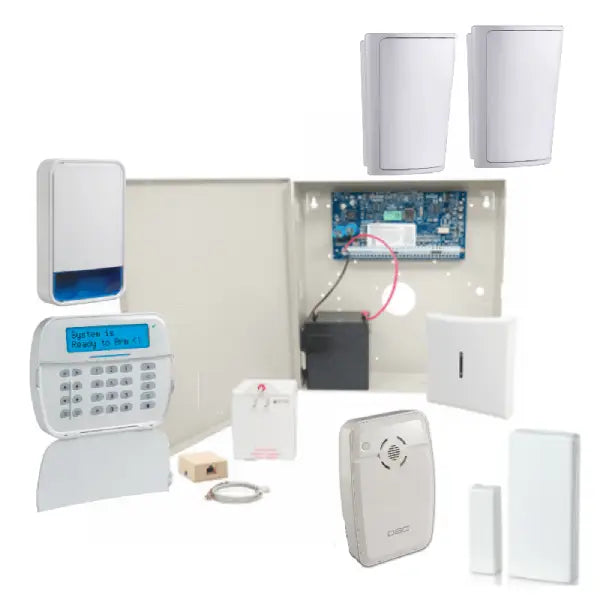

In the DSC Neo Kit:
- DSC Neo Control Panel (DSCKIT-NEO128)
- DSC keypad (Wired)
- DSC Power Series NEO Power-G Transceiver Module
- 2 x Wireless PIR detectors
- 1 x Wireless Siren (DSCPG4911B)
- 1 x Wireless Internal Siren
- 1 x Wireless reed switch
- Plug pack to suit DSC control panel
- Battery, accessories and resistor pack.
DSC Neo Wired Keypad, DSCHS2LCDRF4-N
- 2x16 full message display
- Intuitive clock programming
- Multiple door chime
- Blue display
- White keypad back light
- Displays outdoor temperature
- Voice Prompts (*HS2LCDWFPV9 only)
- Installer programming
- Multi-language support
- 5 programmable function keys
- Fire, medical and panic keys
- Tamper switch
- Proximity with MPT mini prox tags
DSC Neo Wireless PIR Detector, PG4914
Wireless motion detector with Pet Immunity to a pet weighing 38kg.
- Motion and temperature* detection in a single device
- Built-in PowerG leading-edge wireless intrusion technology
- Battery lasts 6-8 years with typical use
- Easily accessible battery compartment
- Small size; perfectly shaped for unobtrusive corner placement
- Pet-immune – Target Specific Imaging™ distinguishes between humans and pets weighing up to 38 kg (85 lb)
- Fresnel and cylindrical lenses for uniform detection sensitivity with an operating range of up to 12 m (39 ft), with no vertical adjustment needed
- Faster, easier installations and maintenance
- Advanced True Motion Recognition™ algorithm differentiate between intruders and other disturbances
- Front and back tamper protection
DSC Neo Wireless Outdoor Siren
- Wireless outdoor siren with 110 decibel output, connects to DSC Wireless home alarm system.
- DSC Wireless Indoor Siren
- Siren Output – 85dB
- Siren sounds for alarms, door chimes, entry/exit delay and troubles
- Transmits RF status, low battery and tamper condition
- Front and back tamper detection
- Nominal battery life - 1 year
- Compatible with IMPASSA 433MHz
- Onboard test button
- DSC Power Series NEO Control Panel
- PCB 8-Zone Onboard PCB Panel
- Large Cabinet
- Power Series NEO Power-G Transceiver Module
- Tamper switch
- Tamper bracket
- Telephone connector with leads
Specifications
The Strength of PowerG- Two Way Wireless Communications
Power Series DSC Neo is the leading edge wireless industry technology providing smart control monitoring features.
Visual Alarm Verification Solution
- 2x16 full message display
- Intuitive clock programming
- Multiple door chime
- Blue display
- White keypad back light
- Displays outdoor temperature
- Voice Prompts (*HS2LCDWFPV9 only)
- Installer programming
- Multi-language support
- 5 programmable function keys
- Fire, medical and panic keys
- Tamper switch
- Proximity with MPT mini prox tags
Downloads
Optional Accessories
 |  |  |
|
|
|
|
|
|
Warranty
DSC Neo products are covered by a replacement guarantee for 2 years from the date of purchase.
CTC Security will cover postage for all replacement parts, but will not cover labour for installation cost.
CTC Security offers a 1 year warranty on labour when the system is installed by us.
